In the previous tutorial learning how to write a 3D soft engine from scratch in C#, TS or JS – drawing lines & triangles, we’ve learned how to draw lines & triangles and we really started to see the 3D side our meshes thanks to this wireframe rendering. But we’ve only displayed a cube… And even a simple cube already has 12 faces! Are we going to be forced to handle ourselves all the faces for more complex objects this way? Hopefully not.


3D modelers help the collaboration between 3D designers and developers. The designer can use its favorite tools to build his scenes or meshes (3D Studio Max, Maya, Blender, etc.). Then he will export his work into a file that will be loaded by the developers. The developers will finally push the meshes into his real time 3D engine. There are several file formats available on the market to serialize the job done by the artists. In our case, we’re going to use JSON. Indeed, David Catuhe has done an export library for Blender that output a .babylon file using JSON. We’re then going to see how to parse that file and display the meshes in our lovely soft engine.

Blender is a free 3D modeler you can download here: http://www.blender.org/

You can write plug-ins in Python. That’s what we’ve done for the exporter.

1 – Writing the core logic for camera, mesh & device object
2 – Drawing lines and triangles to obtain a wireframe rendering
3 – Loading meshes exported from Blender in a JSON format
4 – Filling the triangle with rasterization and using a Z-Buffer
4b – Bonus: using tips & parallelism to boost the performance
5 – Handling light with Flat Shading & Gouraud Shading
6 – Applying textures, back-face culling and WebGL

In this tutorial, you will learn how to draw lines, what a face is and how cool is the Bresenham algorithm to draw some triangles.

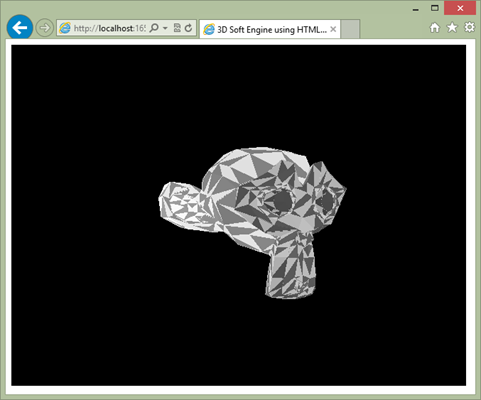

By following this tutorial, you will be able to have such a result:

And you’ll see that you’ve already done most of the job in the 2 previous tutorials to do that.

Install the Babylon exporter and generate your own scene with Blender

Once you’ll have installed Blender, please download our Babylon exporter from here: io_export_babylon.py

Copy this file into the \script\addons directory where you’ve installed Blender (for instance “C:\Program Files\Blender Foundation\Blender\2.67\scripts\addons” in my specific case).

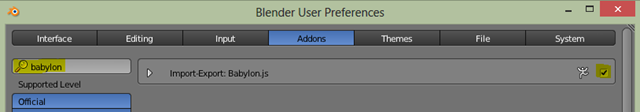

You need to active our plug-in in the user preferences. Go to “File” –> “User Preferences” and the “Addons” tab. Search for “babylon” and activate it by checking the case.

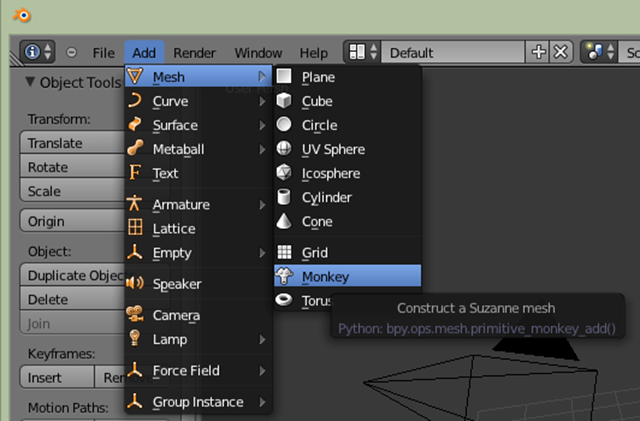

Do whatever you want with Blender. If you’re like me, really bad at building 3D meshes, here is a cool option that will impress your friends during geeks parties: “Add” –> “Mesh” –> “Monkey”:


You should then obtain a screen like that:

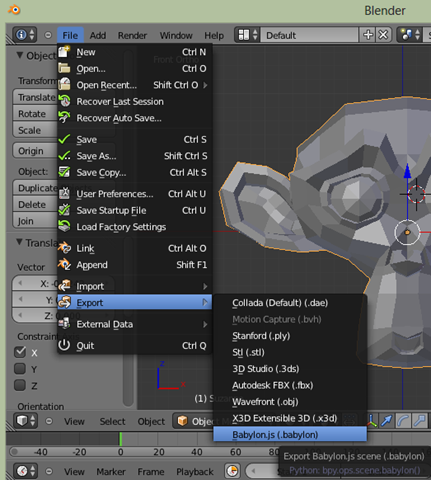

Last step is to export it into the .babylon file format (our JSON file). “File” –> “Export” –> “Babylon.js”


Name the file “monkey.babylon”.

Note: this monkey is named Suzanne and is very well-known in the 3D/gaming community. By knowing her, you’re now a proud member of this cool community! Welcome onboard! ;)

Loading the exported JSON file and displaying its meshes

As I was telling you at the beginning of this article, we’ve already built all the needed logic to display more complex meshes like Suzanne. We’ve got our Face, Mesh & Vertex logic. This is all we need for now.

In the JSON format, the Babylon exporter is adding more details than we currently need. For instance, it also adds potential details about the textures, the lights, etc. That’s why, we’re going to parse the file and jump directly to areas we’re only interesting in: the vertices and the faces’ indices to build our wireframe rendering.

Note: for C# developers, you need to install Json.NET from Newtonsoft via nuGet like we’ve done in the first tutorial to add SharpDX. Indeed, JSON parsing is not natively supported in .NET like inside a browser using JavaScript.

Let’s start by adding the loading logic inside the Device object:

// Loading the JSON file in an asynchronous manner
public async Task<Mesh[]> LoadJSONFileAsync(string fileName)
   var meshes = new List<Mesh>();
   var file = await Windows.ApplicationModel.Package.Current.InstalledLocation.GetFileAsync(fileName);
   var data = await Windows.Storage.FileIO.ReadTextAsync(file);
   dynamic jsonObject = Newtonsoft.Json.JsonConvert.DeserializeObject(data);
    for (var meshIndex = 0; meshIndex < jsonObject.meshes.Count; meshIndex++)
   {
       var verticesArray = jsonObject.meshes[meshIndex].vertices;
       // Faces
       var indicesArray = jsonObject.meshes[meshIndex].indices;
        var uvCount = jsonObject.meshes[meshIndex].uvCount.Value;
       var verticesStep = 1;
        // Depending of the number of texture's coordinates per vertex
       // we're jumping in the vertices array  by 6, 8 & 10 windows frame
       switch ((int)uvCount)
       {
           case 0:
               verticesStep = 6;
               break;
           case 1:
               verticesStep = 8;
               break;
           case 2:
               verticesStep = 10;
               break;
       }
        // the number of interesting vertices information for us
       var verticesCount = verticesArray.Count / verticesStep;
       // number of faces is logically the size of the array divided by 3 (A, B, C)
       var facesCount = indicesArray.Count / 3;
       var mesh = new Mesh(jsonObject.meshes[meshIndex].name.Value, verticesCount, facesCount);
        // Filling the Vertices array of our mesh first
       for (var index = 0; index < verticesCount; index++)
       {
           var x = (float)verticesArray[index * verticesStep].Value;
           var y = (float)verticesArray[index * verticesStep + 1].Value;
           var z = (float)verticesArray[index * verticesStep + 2].Value;
           mesh.Vertices[index] = new Vector3(x, y, z);
       }
        // Then filling the Faces array
       for (var index = 0; index < facesCount; index++)
       {
           var a = (int)indicesArray[index * 3].Value;
           var b = (int)indicesArray[index * 3 + 1].Value;
           var c = (int)indicesArray[index * 3 + 2].Value;
           mesh.Faces[index] = new Face { A = a, B = b, C = c };
       }
        // Getting the position you've set in Blender
       var position = jsonObject.meshes[meshIndex].position;
       mesh.Position = new Vector3((float)position[0].Value, (float)position[1].Value, (float)position[2].Value);
       meshes.Add(mesh);
   }
   return meshes.ToArray();

// Loading the JSON file in an asynchronous manner and
/ calling back with the function passed providing the array of meshes loaded
public LoadJSONFileAsync(fileName: string, callback: (result: Mesh[]) => any): void {
   var jsonObject = {};
   var xmlhttp = new XMLHttpRequest();
   xmlhttp.open("GET", fileName, true);
   var that = this;
   xmlhttp.onreadystatechange = function () {
       if (xmlhttp.readyState == 4 && xmlhttp.status == 200) {
           jsonObject = JSON.parse(xmlhttp.responseText);
           callback(that.CreateMeshesFromJSON(jsonObject));
       }
   };
   xmlhttp.send(null);
private CreateMeshesFromJSON(jsonObject): Mesh[] {
   var meshes: Mesh[] = [];
   for (var meshIndex = 0; meshIndex < jsonObject.meshes.length; meshIndex++) {
       var verticesArray: number[] = jsonObject.meshes[meshIndex].vertices;
       // Faces
       var indicesArray: number[] = jsonObject.meshes[meshIndex].indices;
        var uvCount: number = jsonObject.meshes[meshIndex].uvCount;
       var verticesStep = 1;
        // Depending of the number of texture's coordinates per vertex
       // we're jumping in the vertices array  by 6, 8 & 10 windows frame
       switch (uvCount) {
           case 0:
               verticesStep = 6;
               break;
           case 1:
               verticesStep = 8;
               break;
           case 2:
               verticesStep = 10;
               break;
       }
        // the number of interesting vertices information for us
       var verticesCount = verticesArray.length / verticesStep;
       // number of faces is logically the size of the array divided by 3 (A, B, C)
       var facesCount = indicesArray.length / 3;
       var mesh = new SoftEngine.Mesh(jsonObject.meshes[meshIndex].name, verticesCount, facesCount);

       // Filling the Vertices array of our mesh first
       for (var index = 0; index < verticesCount; index++) {
           var x = verticesArray[index * verticesStep];
           var y = verticesArray[index * verticesStep + 1];
           var z = verticesArray[index * verticesStep + 2];
           mesh.Vertices[index] = new BABYLON.Vector3(x, y, z);
       }

       // Then filling the Faces array
       for (var index = 0; index < facesCount; index++) {
           var a = indicesArray[index * 3];
           var b = indicesArray[index * 3 + 1];
           var c = indicesArray[index * 3 + 2];
           mesh.Faces[index] = {
               A: a,
               B: b,
               C: c
           };
       }

       // Getting the position you've set in Blender
       var position = jsonObject.meshes[meshIndex].position;
       mesh.Position = new BABYLON.Vector3(position[0], position[1], position[2]);
       meshes.push(mesh);
   }
   return meshes;

// Loading the JSON file in an asynchronous manner and
/ calling back with the function passed providing the array of meshes loaded
Device.prototype.LoadJSONFileAsync = function (fileName, callback) {
   var jsonObject = {};
   var xmlhttp = new XMLHttpRequest();
   xmlhttp.open("GET", fileName, true);
   var that = this;
   xmlhttp.onreadystatechange = function () {
       if(xmlhttp.readyState == 4 && xmlhttp.status == 200) {
           jsonObject = JSON.parse(xmlhttp.responseText);
           callback(that.CreateMeshesFromJSON(jsonObject));
       }
   };
   xmlhttp.send(null);
;
evice.prototype.CreateMeshesFromJSON = function (jsonObject) {
   var meshes = [];
   for(var meshIndex = 0; meshIndex < jsonObject.meshes.length; meshIndex++) {
       var verticesArray = jsonObject.meshes[meshIndex].vertices;
       // Faces
       var indicesArray = jsonObject.meshes[meshIndex].indices;
        var uvCount = jsonObject.meshes[meshIndex].uvCount;
       var verticesStep = 1;
        // Depending of the number of texture's coordinates per vertex
       // we're jumping in the vertices array  by 6, 8 & 10 windows frame
       switch(uvCount) {
           case 0:
               verticesStep = 6;
               break;
           case 1:
               verticesStep = 8;
               break;
           case 2:
               verticesStep = 10;
               break;
       }
        // the number of interesting vertices information for us
       var verticesCount = verticesArray.length / verticesStep;
       // number of faces is logically the size of the array divided by 3 (A, B, C)
       var facesCount = indicesArray.length / 3;
       var mesh = new SoftEngine.Mesh(jsonObject.meshes[meshIndex].name, verticesCount, facesCount);
        // Filling the Vertices array of our mesh first
       for (var index = 0; index < verticesCount; index++) {
           var x = verticesArray[index * verticesStep];
           var y = verticesArray[index * verticesStep + 1];
           var z = verticesArray[index * verticesStep + 2];
           mesh.Vertices[index] = new BABYLON.Vector3(x, y, z);
       }
        // Then filling the Faces array
       for(var index = 0; index < facesCount; index++) {
           var a = indicesArray[index * 3];
           var b = indicesArray[index * 3 + 1];
           var c = indicesArray[index * 3 + 2];
           mesh.Faces[index] = {
               A: a,
               B: b,
               C: c
           };
       }
        // Getting the position you've set in Blender
       var position = jsonObject.meshes[meshIndex].position;
       mesh.Position = new BABYLON.Vector3(position[0], position[1], position[2]);
       meshes.push(mesh);
   }
   return meshes;
;

You will probably wonder why we’re jumping by 6, 8 & 10 in the vertices array to take our 3D coordinate (X, Y, Z) of our vertices. Again, this is because the Babylon exporter adds more details that we currently need for our wireframe rendering. That’s why, we’re filtering those details using this frame approach. This logic is specific to our file format. If you want to load the export from other (like the one from three.js), you’ll just have to identity where to retrieve the vertices and faces indices in another file format.

Note: to be able to load our .babylon files, TypeScript/JavaScript developers, you need to define a new MIME type “application/babylon” targeting the extension “.babylon”. In IIS, you need to declare it inside your web.config:

  <system.webServer>
   <staticContent>
     <mimeMap fileExtension=".babylon" mimeType="application/babylon" />
   </staticContent>
 </system.webServer>

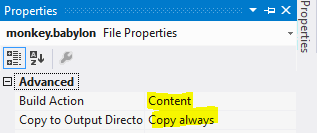

C# developers, you need to change the properties of the file you will include in the solution. Switch “Build Action” to “Content” and always copy to the output directory:


Otherwise, the file won’t be found.

Finally, we now need to update the equivalent of our main function to call this new LoadJSONFileAsync function instead of creating manually our cube. As we will also have potentially several meshes to animate, we need also to change the rotation values during each tick to every meshes loaded:

private Device device;
Mesh[] meshes;
Camera mera = new Camera();
private async void Page_Loaded(object sender, RoutedEventArgs e)
   // Choose the back buffer resolution here
   WriteableBitmap bmp = new WriteableBitmap(640, 480);
    // Our Image XAML control
   frontBuffer.Source = bmp;

   device = new Device(bmp);
   meshes = await device.LoadJSONFileAsync("monkey.babylon");
   mera.Position = new Vector3(0, 0, 10.0f);
   mera.Target = Vector3.Zero;
    // Registering to the XAML rendering loop
   CompositionTarget.Rendering += CompositionTarget_Rendering;
// Rendering loop handler
void CompositionTarget_Rendering(object sender, object e)
   device.Clear(0, 0, 0, 255);
    foreach (var mesh in meshes) {
       // rotating slightly the meshes during each frame rendered
       mesh.Rotation = new Vector3(mesh.Rotation.X + 0.01f, mesh.Rotation.Y + 0.01f, mesh.Rotation.Z);
   }
    // Doing the various matrix operations
   device.Render(mera, meshes);
   // Flushing the back buffer into the front buffer
   device.Present();

///<reference path="SoftEngine.ts"/>
var canvas: HTMLCanvasElement;
var device: SoftEngine.Device;
var meshes: SoftEngine.Mesh[] = [];
var mera: SoftEngine.Camera;
document.addEventListener("DOMContentLoaded", init, false);
function init() {
   canvas = <HTMLCanvasElement> document.getElementById("frontBuffer");
   mera = new SoftEngine.Camera();
   device = new SoftEngine.Device(canvas);
    mera.Position = new BABYLON.Vector3(0, 0, 10);
   mera.Target = new BABYLON.Vector3(0, 0, 0);
    device.LoadJSONFileAsync("monkey.babylon", loadJSONCompleted)
function loadJSONCompleted(meshesLoaded: SoftEngine.Mesh[]) {
   meshes = meshesLoaded;
   // Calling the HTML5 rendering loop
   requestAnimationFrame(drawingLoop);
// Rendering loop handler
function drawingLoop() {
   device.clear();
    for (var i = 0; i < meshes.length; i++) {
       // rotating slightly the mesh during each frame rendered
       meshes[i].Rotation.x += 0.01;
       meshes[i].Rotation.y += 0.01;
   }
    // Doing the various matrix operations
   device.render(mera, meshes);
   // Flushing the back buffer into the front buffer
   device.present();
    // Calling the HTML5 rendering loop recursively
   requestAnimationFrame(drawingLoop);

var canvas;
var device;
var meshes = [];
var mera;
document.addEventListener("DOMContentLoaded", init, false);
function init() {
   canvas = document.getElementById("frontBuffer");
   mera = new SoftEngine.Camera();
   device = new SoftEngine.Device(canvas);
   mera.Position = new BABYLON.Vector3(0, 0, 10);
   mera.Target = new BABYLON.Vector3(0, 0, 0);
   device.LoadJSONFileAsync("monkey.babylon", loadJSONCompleted);
function loadJSONCompleted(meshesLoaded) {
   meshes = meshesLoaded;
   // Calling the HTML5 rendering loop
   requestAnimationFrame(drawingLoop);
// Rendering loop handler
function drawingLoop() {
   device.clear();
    for (var i = 0; i < meshes.length; i++) {
       // rotating slightly the mesh during each frame rendered
       meshes[i].Rotation.x += 0.01;
       meshes[i].Rotation.y += 0.01;
   }
    // Doing the various matrix operations
   device.render(mera, meshes);
   // Flushing the back buffer into the front buffer
   device.present();
    // Calling the HTML5 rendering loop recursively
   requestAnimationFrame(drawingLoop);

You should now have a 3D engine which is capable of loading meshes exported by Blender and animate them in a wireframe rendering mode! I don’t know about you, but I was very excited to reach this stage. :)

Again, you can download the solutions containing the source code:

C# : SoftEngineCSharpPart3.zip

TypeScript : SoftEngineTSPart3.zip

JavaScript : SoftEngineJSPart3.zip or simply right-click –> view source on the first embedded iframe

So, what’s next now? Well, we need to fill the triangles. This is called rasterization. We will also handle what we name a Z-Buffer to have a proper rendering. In the next tutorial, you’ll then learn how to obtain something like that:


We will fill the triangles with a random color. See you in the fourth tutorial: learning how to write a 3D software engine in C#, TS or JS – Rasterization & Z-Buffering
